Our belt conveyor is a high-efficiency material conveying equipment designed for various industrial fields. It features stable operation, large conveying capacity, and long conveying distance, suitable for transporting block, granular and powdery materials in mining, construction and sand making lines.

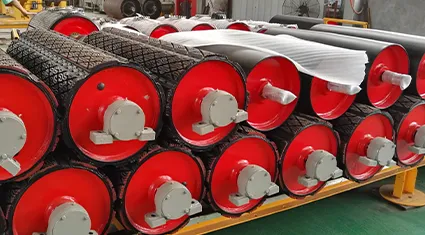

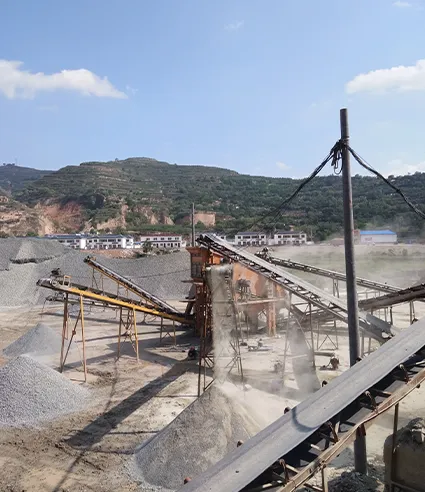

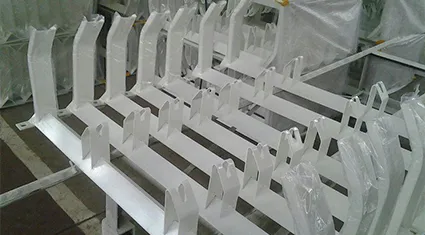

As an essential material conveying equipment in crushing, sand making, mining and other industrial production lines, our belt conveyor is engineered to realize continuous, stable and efficient transportation of materials, connecting various equipment to form a complete production line. It adopts a modular structure, composed of conveyor belt, driving device, roller, idler, tensioning device and frame, which ensures stable operation and easy assembly. The conveyor belt is made of high-quality rubber or PVC material, with excellent wear resistance, tensile strength and corrosion resistance, suitable for transporting various materials such as stone, ore, sand and coal. The driving device adopts a high-efficiency motor and reducer, which provides strong power and ensures stable speed regulation, with low noise and low energy consumption. The adjustable tensioning device can effectively prevent belt slipping, ensuring the normal operation of the conveyor.
| Belt Width(mm) | Belt Length(m)/ Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
|---|---|---|---|---|---|
| 400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.25-2.0 | 30-60 |
| 500 | ≤12/3 | 12-20/3-5.5 | 20-30/5.5-7.5 | 1.25-2.0 | 40-80 |
| 650 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1.25-2.0 | 80-120 |
| 800 | ≤10/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1.25-2.0 | 120-200 |
| 1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1.25-2.0 | 200-320 |
| 1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.25-2.0 | 290-480 |
| 1400 | ≤10/11 | 10-20/11-22 | 20-40/22-45 | 1.25-2.0 | 400-680 |
| 1600 | ≤10/15 | 10-20/22-30 | 20-50/30-75 | 1.25-2.0 | 400-680 |
*Note：Technical parameters are subject to change without notice.
