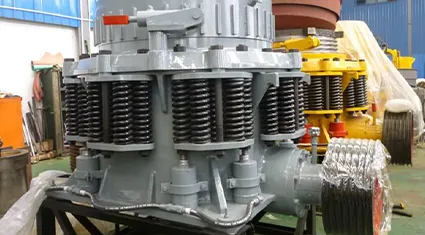

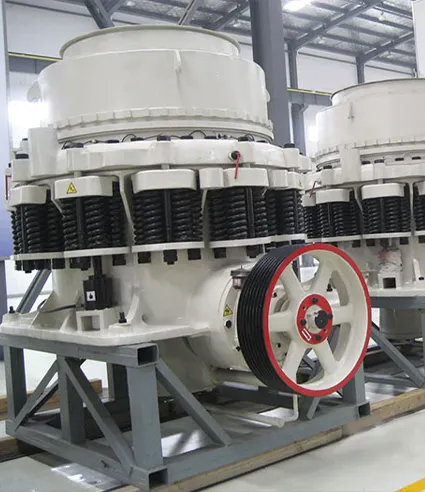

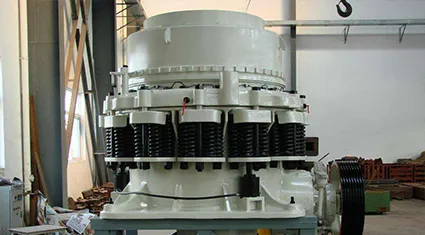

JU QI compound con e crusher is a high performance cone crusher and it is manufactured by the introduced advanced foreign technology with reliable performance and superior quality.
JU QI compound con e crusher is a high performance cone crusher and it is manufactured by the introduced advanced foreign technology with reliable performance and superior quality. It has unique hydraulic clearing system, hydraulic opening adjusting function, easy for changing movable and fixed plate,reducing management and maintenance cost. It is widely used for medium and fine crushing of granite, basalt, diabase, cobble,cobblestone, iron ore etc, which is popular accepted by customers.
| Model | Cavity Type | Stroke(mm)n | Max. FeedingSize(mm) | Discharging OpeningnAdjustment Scope(mm)n | Capacity(t/h)n | Motor power(kw) | Weight(t)n |
|---|---|---|---|---|---|---|---|
| JQ1650C-D | Coarse | 34 | 300 | 35-65 | 280-610 | 250 | 35 |
| JQ1650C-D | Coarse | 34 | 260 | 30-60 | 265-580 | 250 | 35 |
| JQ1650Z-D | Medium Coarse | 34 | 240 | 25-50 | 240-550 | 250 | 35 |
| JQ1650S-X | Fine | 28 | 130 | 20-45 | 180-350 | 250 | 35 |
| JQ1400C-D | Coarse | 30 | 235 | 30-60 | 210-530 | 220 | 25 |
| JQ1400Z-D | Medium Coarse | 30 | 215 | 25-50 | 200-500 | 220 | 25 |
| JQ1400Z-X | Medium Coarse | 25 | 180 | 22-45 | 180-475 | 220 | 25 |
| JQ1400S-X | Fine | 25 | 100 | 19-40 | 130-260 | 220 | 25 |
| JQ1200C-D | Coarse | 22 | 180 | 19-50 | 110-250 | 132 | 16 |
*Note：Technical parameters are subject to change without notice.
