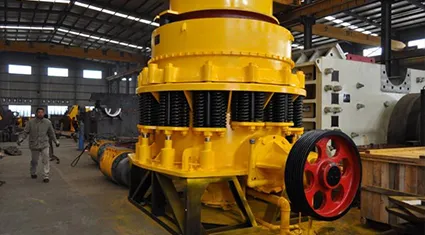

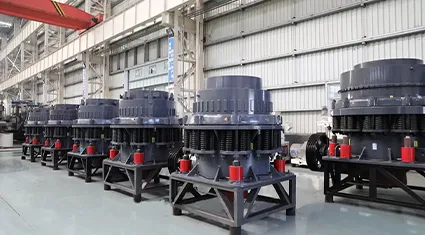

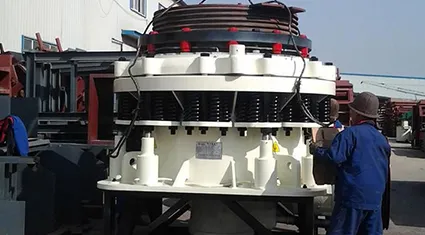

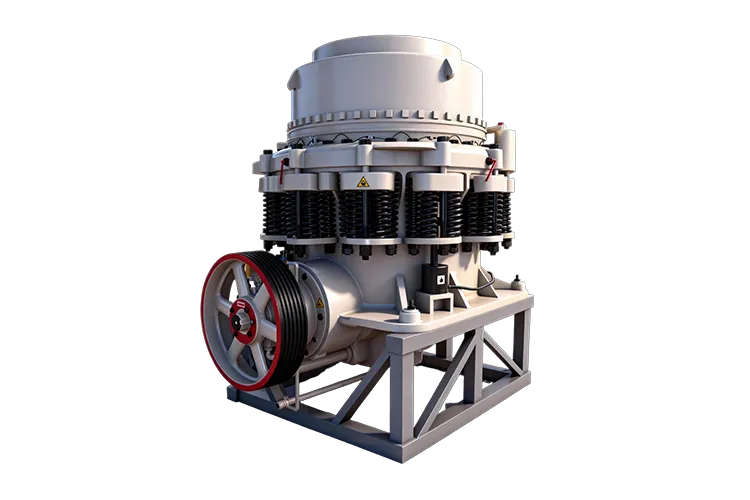

Symons Cone Crusher

The PSG series Symons cone crusher is widely used in metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above.

Capacity: 9-1914t/h Input Size: 30-391mm

Get Price Now Leave Message

Product Introduction

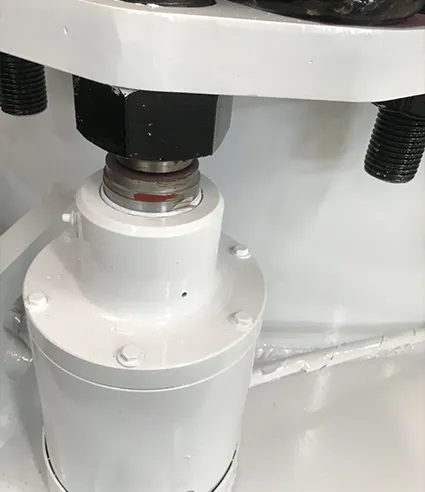

It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operation cost, easy adjustment,economical to use and so on. In the medium and large type of con e crusher, multi-cylinder hydraulic locking clearing system can decrease downtime and save the working strength. The PSG series also use the hydraulic locking and machinery which is more reliable. Importantly, every type has several cavity types, the customer can choose different cavity type according to different requirement. Also PSG series Symons cone crusher use compensating lubricating grease sealing, which can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system uses spring sets,so the foreign matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably.

Product features

Mature Structure & High Stability:processed by precision machining and heat treatment, ensuring stable operation and strong load-bearing capacity in harsh environments.
Excellent Crushing Performance:Laminated crushing principle and optimized eccentric structure improve crushing ratio and efficiency, producing uniform particle size and cubic-shaped products,

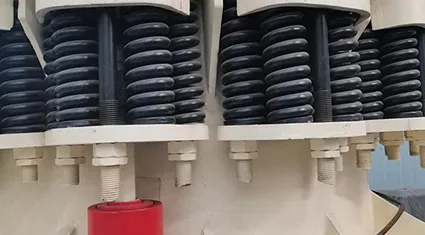

Reliable Protection & Long Service Life:Equipped with spring protection system for overload protection;
high-chromium alloy wear-resistant parts enhance wear resistance, reducing maintenance frequency and extending service life.
Easy Maintenance & Flexible Application:Simple structure, convenient disassembly and maintenance;

Product Parameter

Type	Model	Cavity type	Diameternof conen(mm)n	Adjustingnrange ofndischargenopeningn(mm)n	Recommendnfeedingnsize when thenminimumnoutput sizen(mm)n	Max feednsizen(mm)n	Capacityn(t/h)n	Mainnmotornpowern(kwn	Weightn(kg)n	dimensionn(LxWxH)n(mm)n
2'FT	PSGB-0607	Standard fine	600	6-38	70	60	16-50	30	4500	2195x1158x1651
	PSGB-0609	Standard medium		10-38	95	80	18-65
	PSGB-0611	Standard coarse		13-38	110	90	22-70
	PSGD-0603	Short head fine		3-13	35	30	9-35
	PSGD-0605	Short head coarse		5-16	50	40	22-70
3'FT	PSGB-0910	Standardnfinen	900	9-22	102	85	45-91	75	9980n	2656x1636x2241n
	PSGB-0917n	Standardncoarsen		13-38	175	150	59-163
	PSGB-0918n	Standardnsuper coarsen		25-38	178	150	118-163
	PSGD-0904n	Short headnfinen		3-13	41	35	27-90		10530
	PSGD-0906n	Short headnmediumn		3-16	76	65	27-100
	PSGD-0907n	Short headncoarsen		6-19	102	85	59-129
4.25'FT	PSGB-1313	Standardnfinen	1295	13-31	137	115	109-181	160	22460	2983x1866x3156n
	PSGB-1321	Standard finen		16-38	210	178	132-253
	PSGB-1324	Standard mediumn		19-51	241	205	172-349
	PSGB-1325	Standard super coarsen		25-51	259	220	236-358
	PSGD-1306	Short head finen		3-16	64	54	36-163
	PSGD-1308	Short head mediumn		6-16	89	76	82-163
	PSGD-1310	Short head coarsen		8-25	105	89	109-227
	PSGD-1313	Short head super coarse		16-25	133	113	118-236
5.5'FT	PSGB-1620	Standard finen	1676	16-38	209	178	181-327	250	43270	3941x2954x3771n
	PSGB-1624	Standard mediumn		22-51	241	205	258-417
	PSGB-1626	Standard coarsen		25-64	269	228	299-635
	PSGB-1636	Standard super coarsen		38-64	368	313	431-630
	PSGD-1607	Short head finen		5-13	70	60	90-209		43870
	PSGD-1608	Short head mediumn		6-19	89	76	136-281
	PSGD-1613	Short head coarsen		10-25	133	113	190-336
	PSGD-1614	Short head super coarsen		13-25	133	113	253-336
7'FT	PSGB-2127	Standard finen	2134	19-38	278	236	544-1034	400	86730	4613x3302x4638n
	PSGB-2133	Standard mediumn		25-51	334	284	862-1424
	PSGB-2136	Standard coarsen		31-64	369	314	1125-1814
	PSGB-2146	Standard super coarsen		38-64	460	391	1252-1941
	PSGD-2110	Short head finen		5-16	105	89	218-463		89500n
	PSGD-2113	Short head mediumn		10-19	133	113	404-580
	PSGD-2117	Short head coarsen		13-25	178	151	517-680
	PSGD-2120	Short head super coarsen		16-25	203	172	580-744

Product size(mm)n	Min. discharge opening (mm)
Product size(mm)n	6mm	10mm	13mm	19mm	25mm	32mm	38mm	50mm
100mm								100→100
76mm							100→100	91→92
64mm						100→100	95→94	82→79
50mm					100→100	93→94	86→84	70→60
38mm				100→100	92→92	80→76	70→60	51→40
32mm				95→94	82→79n	70→60	57→46	41→30
25mm			100→100	86→84	70→60	54→43	44→33	32→22
19mm		100→100	86→83	70→60	51→40	39→28	32→22	25→16
13mm	100→100	86→83	70→60	44→33	32→21	26→17	22→14	17→11
10mm	94→92	70→60	51→40	32→21	25→16	20→13	17→11	13→8
6mm	70→60	44→33	44→33	23→15	17→11	14→9	12→7	9→6
5mm	50→59n	32→21	32→21	17→11	13→8	11→7	9→6	7→4
3mm	34→23	23→15	23→15	12→8	10→6	8→5	7→4	5→3
2mm	25→16	17→11	17→11	9→6	7→4	6→4	5→3	4→2

*Note：Technical parameters are subject to change without notice.
