High frequency vibrating screen is widely used in mineral (such as iron ore, tin, tungsten, tantalum, niobium, and diamond ore, etc.)processing plant, coal beneficiation, chemical industry, brick making, food, pharmaceutical, alkali making, chemical fertilizer,paper making and other industries. Dry and wet screening, grading and dewatering of various materials.

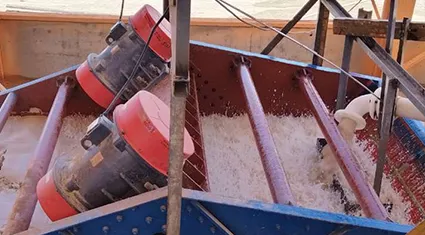

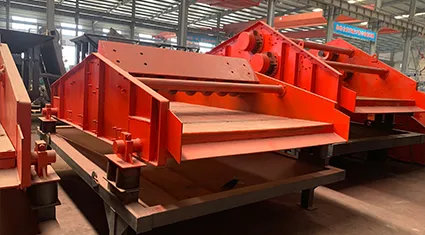

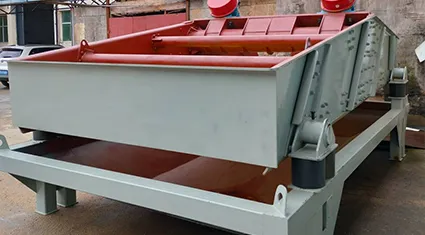

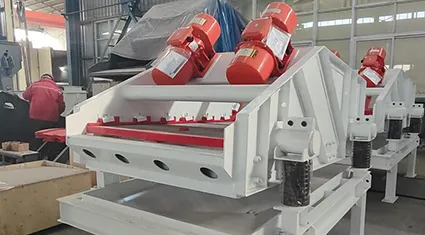

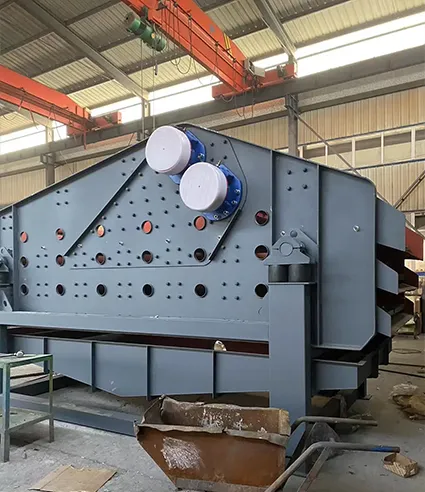

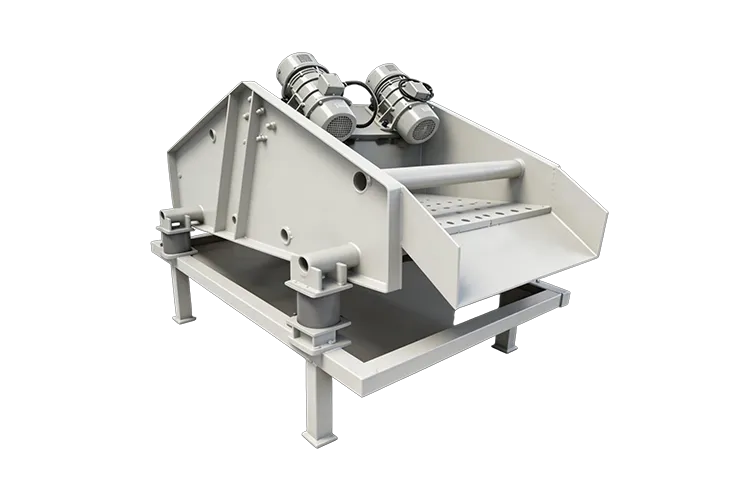

high frequency screen is a core fine screening equipment in modern mineral processing, sand making and aggregate production lines, is specially designed to separate fine particles from materials, improving product quality and resource utilization. It is widely used in mining, metallurgy, building materials, chemical engineering and other industries, suitable for fine classification of ores, sand, sludges and powdery materials. The equipment consists of a screen frame, high-frequency vibration motor, screen mesh, damping device and PLC control system. It adopts high-frequency, small-amplitude vibration principle, which makes the materials on the screen surface vibrate violently, accelerating the separation of fine particles and preventing screen mesh blockage. The high-frequency vibration motor provides stable and powerful vibration, ensuring uniform screening and high screening efficiency.
| Model | JXSC-1036 | JXSC-1236 | JXSC-1536 | JXSC-1545 | JXSC-1836 | JXSC-1845 | JXSC-2045 | JXSC-2460 |
|---|---|---|---|---|---|---|---|---|
| Capacity(t/h) | 10-15t/h | 18-65t/h | 30-90t/h | 30-90t/h | 40-120t/h | 40-120t/h | 60-160t/h | 80-250 t/h |
| Screening Surface Sizen(mm)n | 1000*3600 | 1200*3600 | 1500*3600 | 1500*4500 | 1800*3600 | 1800*4500 | 2000*4500 | 2400*6000 |
| Sieve Size(mm) | Customized according to customer requirements | |||||||
| Double Amplitude(mm)n | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Powder(kw) | 2*1.1 | 2*2.2 | 2*3.7 | 2*5.5 | 2*3.7 | 2*5.5 | 2*11 | 2*18.5 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
*Note:Technical parameters are subject to change without notice.
