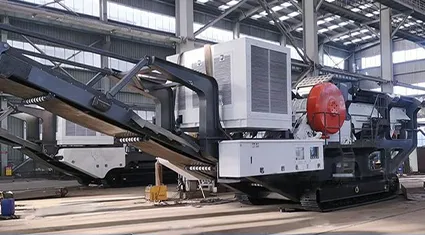

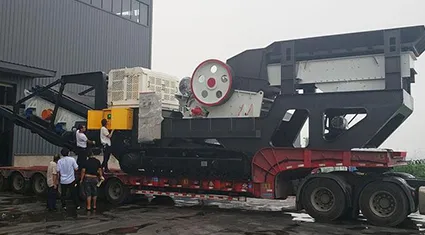

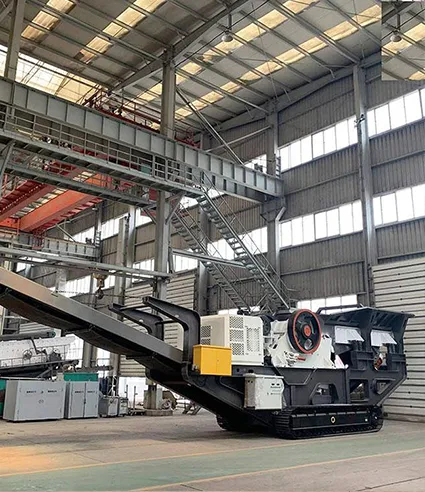

MT Track Mobile Jaw Crusher Plant

Track type mobile jaw crusher is suitable for all the natural stones as primary crusher. This plant adopts crawler chassis with fully hydraulic drive, high-reduction-ratio jaw crusher, feeder and vibrating feeder and such auxiliary machines to make an integrated crushing plant to solve the primary crushing problem.

Capacity: 20-400t/h Input Size: 325-815mm

Get Price Now Leave Message

Product Introduction

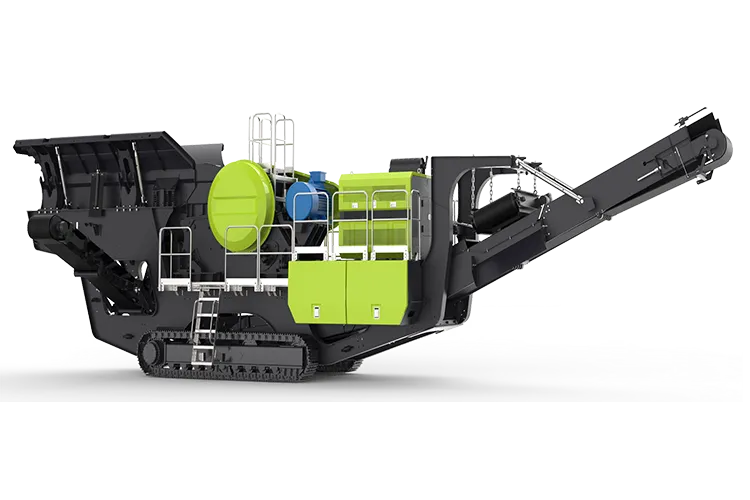

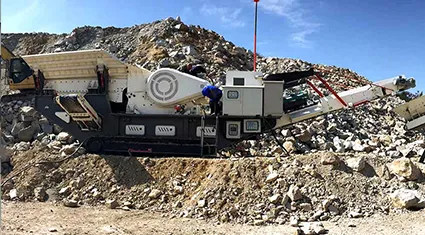

MT track mobile jaw crusher plant is a high-performance integrated mobile primary crushing equipment, it integrates high-efficiency jaw crusher, vibrating feeder, belt conveyor and PLC control system on a heavy-duty track chassis. It is specially designed for harsh and complex working environments, realizing on-site primary crushing without complex foundation construction, which greatly reduces material transportation and operation costs and improves construction efficiency significantly.Adopting a heavy-duty track chassis with excellent ground contact performance and strong driving force, the equipment can move flexibly on uneven terrain such as mining yards, construction sites and mountainous areas, adapting to harsh working conditions with dust, slope and muddy roads.

Product features

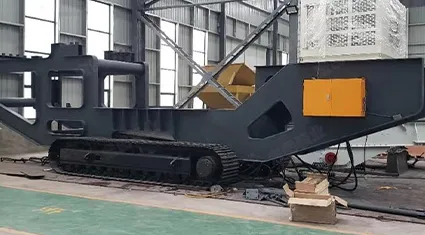

Heavy-duty track chassis with excellent ground contact performance, can move flexibly on uneven terrain, adapting to harsh working environments such as slopes and muddy roads.
Equipped with high-quality jaw crusher, deep V-shaped crushing chamber and heavy-duty eccentric shaft, ensuring large feeding size, high crushing efficiency and stable processing capacity.
High-strength modular non-welded frame, wear-resistant jaw components and sealed key parts, ensuring long-term stable operation in harsh environments and reducing maintenance costs.
PLC automatic control system with remote operation and overload protection;
on-site crushing eliminates intermediate transportation links, reducing transportation costs by 50%-70%.

Product Parameter

Model	Equipment	Max. Feeding size(mm)	Capacityn(t/h)n	Powern(kw)n	Overall dimensionsn(LWH)(mm)n	Weightn(t)n
MTJ46	GZD0724	325	20-60	3	980024703470	19
MTJ46	PE400*600	325	20-60	30	980024703470	19
MTJ57	GZD0724	425	50-100	3	1050024703470	23
MTJ57	PE500*750	425	50-100	55	1050024703470	23
MTJC96	GZD3896	500	80-180	11	11150X3100X4150	32
MTJC96	C96	500	80-180	75	11150X3100X4150	32
MTJC106	ZSW4211	630	110-250	15	1333031504430	39
MTJC106	C106	630	110-250	90	1333031504430	39
MTJC110	ZSW4213	815	220-400	22	13950X3350X4650	45
MTJC110	C110	815	220-400	110	13950X3350X4650	45

*Note：Technical parameters are subject to change without notice.
