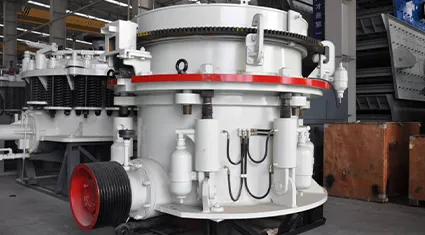

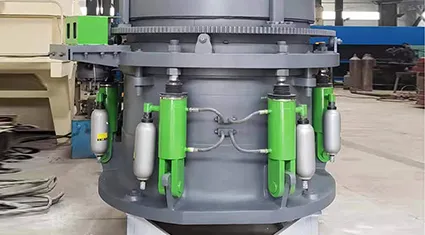

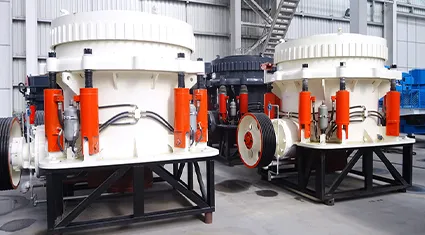

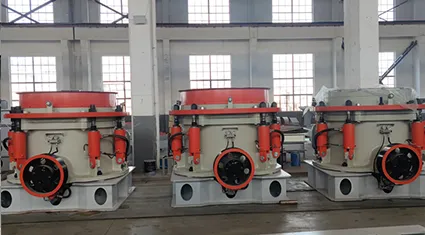

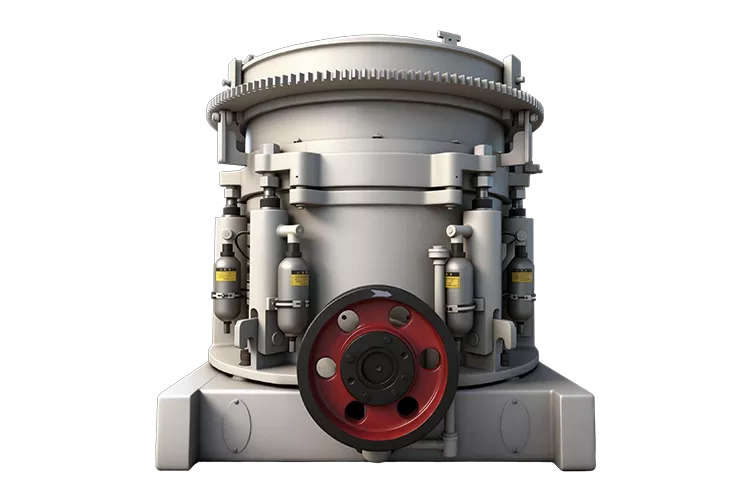

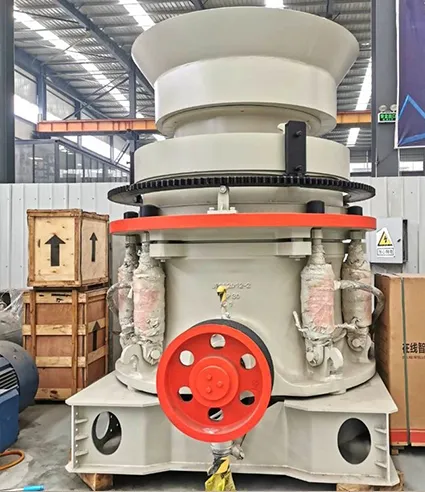

HP series multi-cylinder hydraulic cone crusher is the new generation of cone crusher which imports the most advanced technology, and is produced by ShuntianHeavy Industry after many years of practice. Its performance reaches the advanced level of industry, and is the ideal choice for mining equipment industry.
Combined high speed with large stroke. HP series multi-cylinder hydraulic cone crusher of Shuntian Heavy Industry greatly improves the passing rate under rated power and opening size . which enable it has the biggest capacity among the crushers with same specification. The HP multi-cylinder hydraulic cone crusher adopts a full cavity feeding method. After the material enters the crushing cavity, it is crushed multiple times, and the final product size tends to be uniform. The proportion of cubic grains is greatly increased. In the beneficiation industry, the final product is finer, achieving the effect of" more crushing and less grinding.
| Model | Cavity | Standard Type | Short head Type | Power(kw) | Capacity(t/h) | Weight(t) | ||
|---|---|---|---|---|---|---|---|---|
| Feeding opening Sizen(mm)n | Discharging OpeningnSize(mm)n | Feeding opening Size(mm) | Min Discharging nOpening Size(mm)n | |||||
| HP200 | (BC) | 132-200 | 90-250 | 14 | ||||
| (C) | 185 | 19 | 76 | 10 | ||||
| (M) | 125 | 17 | 54 | 6 | ||||
| (F) | 95 | 13 | 23 | 6 | ||||
| (EF) | 10 | 5 | ||||||
| HP300 | (BC) | 230 | 25 | 180-250 | 115-440 | 19.96 | ||
| (C) | 210 | 20 | 75 | 10 | ||||
| (M) | 150 | 15 | 50 | 8 | ||||
| (F) | 105 | 10 | 20 | 6 | ||||
| (EF) | 20 | 6 | ||||||
| HP400 | (BC) | 295 | 30 | 280-355 | 140-630 | 28.72 | ||
| (C) | 250 | 25 | 90 | 10 | ||||
| (M) | 195 | 20 | 50 | 8 | ||||
| (F) | 110 | 14 | 40 | 6 | ||||
| (EF) | 30 | 6 | ||||||
| HP500 | (BC) | 330 | 30 | 355-450 | 175-790 | 38 | ||
| (C) | 285 | 25 | 90 | 13 | ||||
| (M) | 200 | 20 | 55 | 10 | ||||
| (F) | 133 | 16 | 40 | 8 | ||||
| (EF) | 35 | 6 | ||||||
| HP800 | (BC) | 353 | 32 | 550-630 | 260-1200 | 64.1 | ||
| (C) | 297 | 32 | 155 | 13 | ||||
| (M) | 267 | 25 | 92 | 10 | ||||
| (F) | 219 | 16 | 33 | 6 | ||||
| (EF) | ||||||||
| Min. discharging opening | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | t/h | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
| HP200 | t/h | 90-120 | 120-150 | 140-180 | 150-190 | 160-200 | 170-220 | 190-235| | 210-250 | ||
| HP300 | t/h | 115-140 | 150-185 | 180-220 | 200-240 | 220-260 | 230-280 | 250-320 | 300-380 | 350-440 | |
| HP400 | t/h | 140-175 | 185-230 | 225-280| | 255-320 | 275-345 | 295-370 | 325-430 | 360-490 | 410-560 | 465-630 |
| HP500 | t/h | 175-220 | 230-290 | 280-350 | 320-400 | 345-430 | 365-455 | 405-535 | 445-605 | 510-700 | 580-790 |
| HP800 | t/h | 260-335| | 325-425 | 385-500 | 435-545 | 470-600 | 495-730 | 545-800 | 600-950 | 690-1050| | 785-1200 |
*Note：Technical parameters are subject to change without notice.
