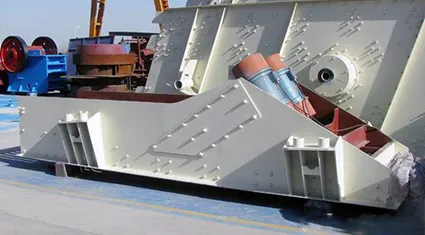

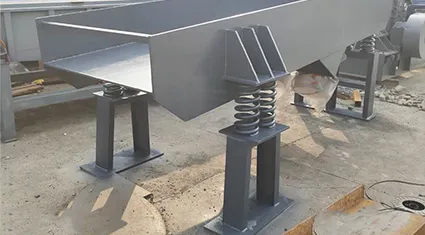

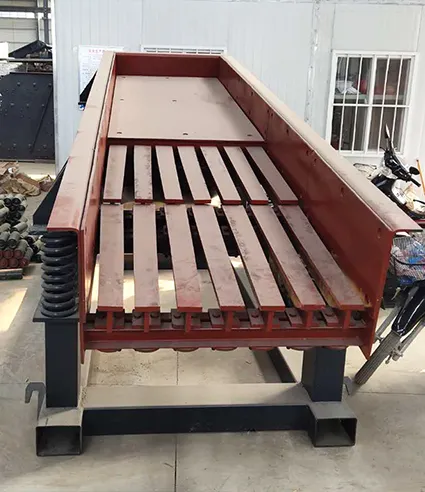

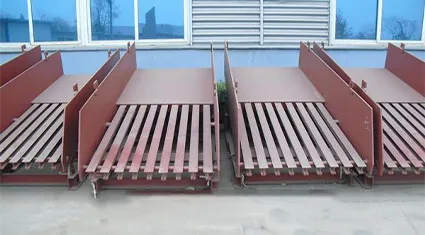

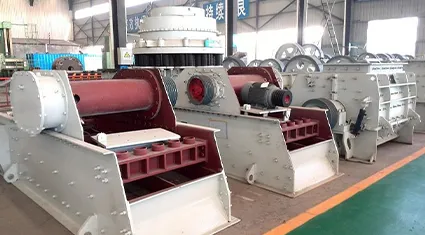

As an essential supporting equipment in modern crushing, screening and sand making lines, our GZT vibrating feeder is engineered to realize continuous, uniform and stable feeding of raw materials to primary crushing equipment such as jaw crushers and impact crushers.
GZT series vibrating feeder is designed and manufactured by absorbing Sweden's technology and adopts vibrating motor manufactured by Japan technology as the excitation source. This series vibrating is applied to evenly feeding material into primary crusher. It can remove the fine material and dust under the action of the bar screen surface to realize the pre-screening, which can improve the coarse crushing capacity. It is especially suitable for material feeding before the coarse crushing in the hydropower,building material and mining industry.
| Model | Max feed size(mm)n | Capacity(t/h)n | Motor power(kw)rn | Installation slope(°)nn | Double amplitude(mm)n | Overall dimensions(L*W*H)(mm) | Weight(kg)n |
|---|---|---|---|---|---|---|---|
| GZT-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2481*1130*990 | 2422 |
| GZT-0932 | 560 | 80-150 | 2*2.4 | 10 | 4-8 | 3298*1512*1195 | 3203 |
| GZT-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 4100*1818*1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 4926*1676*1475 | 5060 |
| GZT-1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 5704*1840*1492 | 6385 |
| GZT-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 6110*2440*1560 | 8900 |
*Note：Technical parameters are subject to change without notice.
