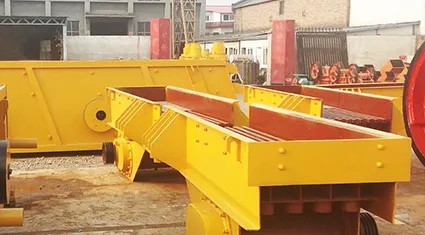

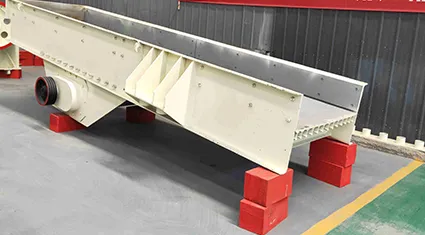

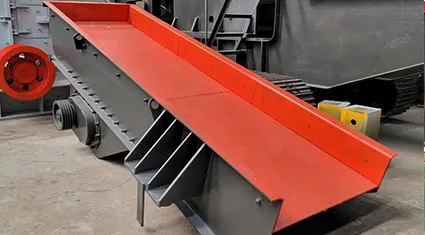

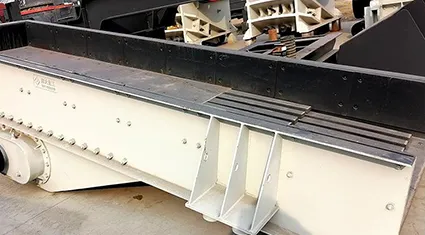

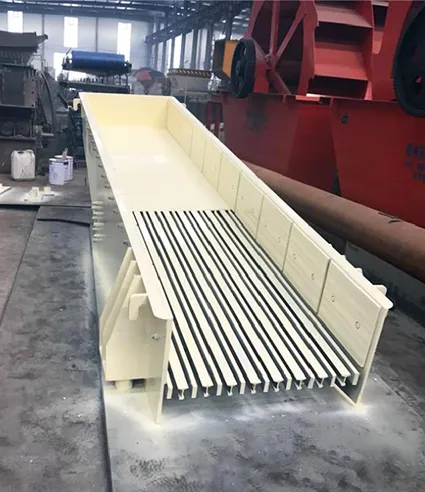

ZSWT series vibrating feeder is mainly used for continuous and uniform feeding in front of the primary coarse crus her. At the same time, the fine material can be sieved,which greatly increases the production capacity of the crusher.
The feeder is equipped with a thickened wear-resistant liner on the feeding trough, which is made of high-quality manganese steel, greatly enhancing wear resistance and extending the service life, suitable for conveying various abrasive materials such as granite, basalt and limestone. The adjustable vibration amplitude and frequency allow flexible control of feeding speed and capacity, which can be perfectly matched with different types of crushing equipment to improve the overall efficiency of the production line.
| Model | Max feed size(mm)n | Capacity(t/h)n | Motor power(kw)n | Overall dimensions(L*W*H)(mm) | Weight(kg)n | Size of funnel(mm)n |
|---|---|---|---|---|---|---|
| ZSWT490×110 | 580 | 120-300 | 15 | 4957×2371×2125 | 5618 | 4900×1100 |
| ZSWT600×130 | 750 | 400-660 | 37 | 6080×2671×1970 | 8350 | 6000×1300 |
| ZSWT600×160 | 800 | 460-800 | 37 | 6086×3050×2130 | 9000 | 6000×1600 |
| ZSWT600×200 | 1400 | 600-1500 | 45 | 3080×4094×1810 | 15094 | 6000×2000 |
*Note：Technical parameters are subject to change without notice.
